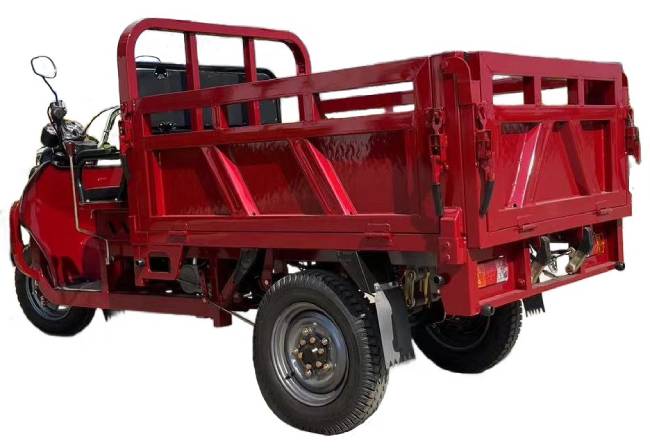

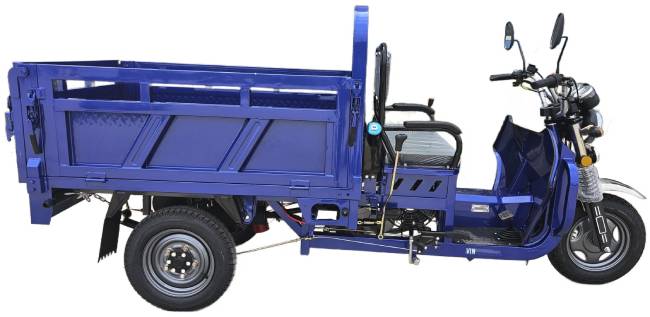

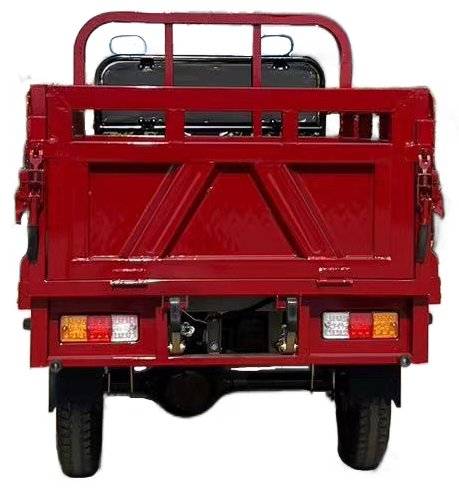

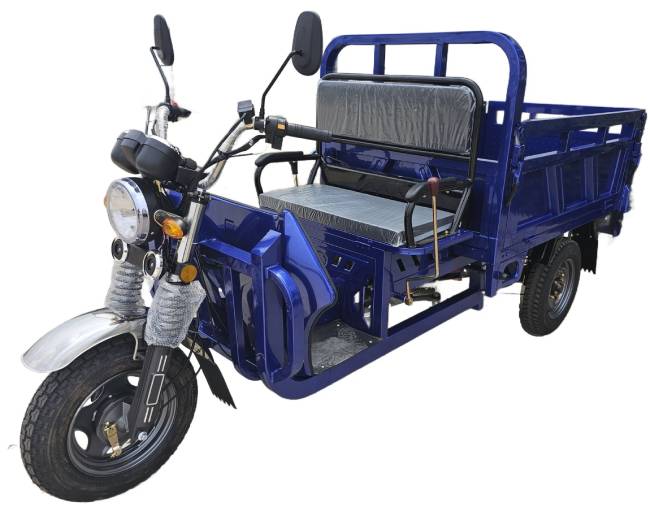

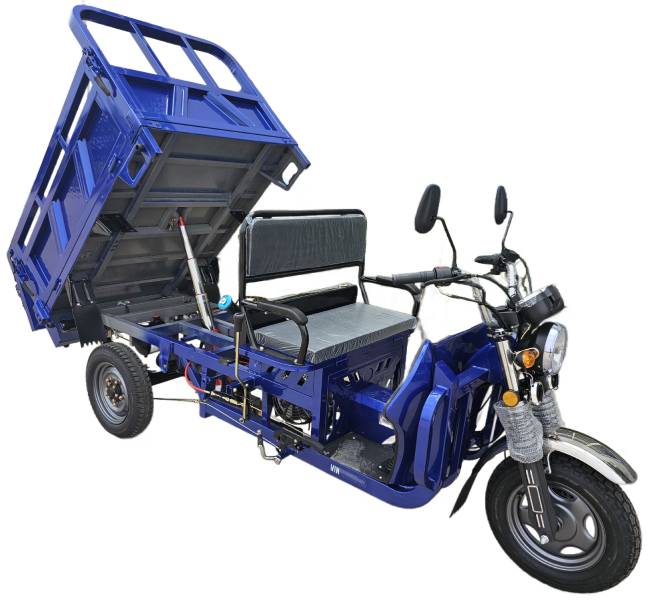

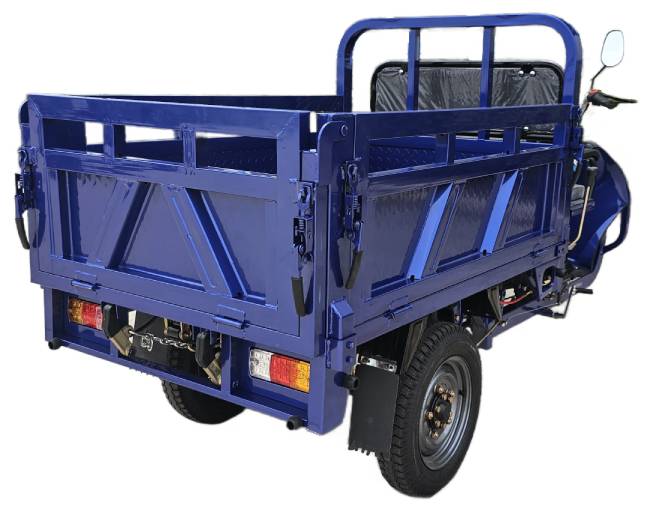

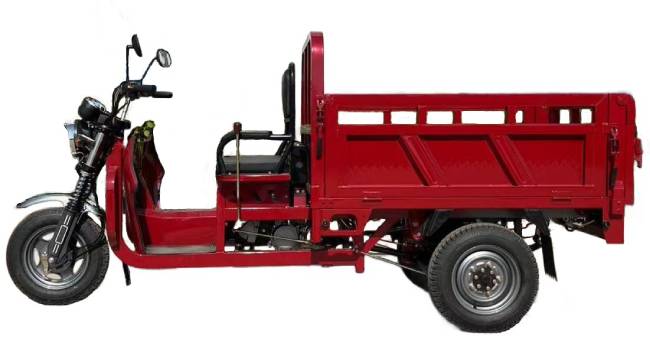

BD 125-12-Tricycle

(Street Legal, Hydraulic Dump Bed)

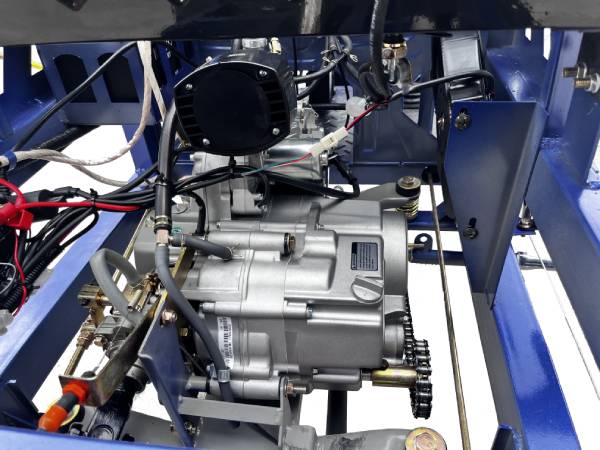

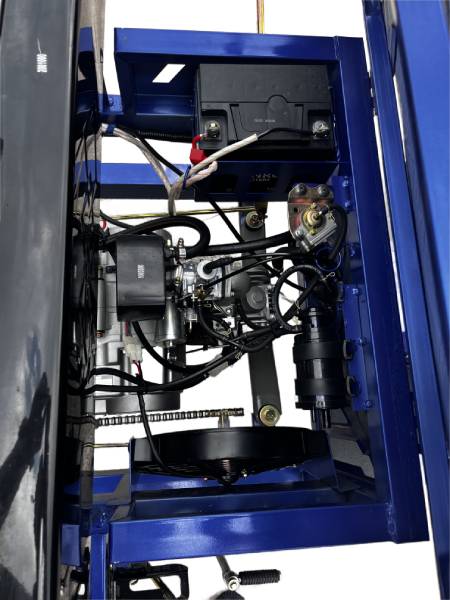

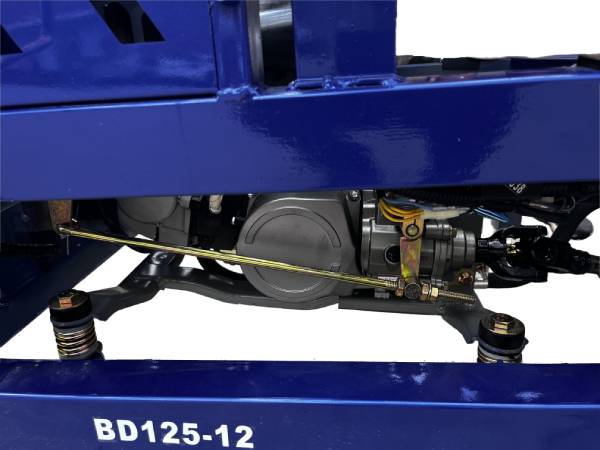

Engine: 124cc, 4 Stroke, Single Cylinder

Cooling: Air Cooled With Auxiliary Fan

Starter System:   Electric & Kick Start

Final Drive :  Shaft Drive

Ignition system:  CDI

Transmission: Shaft, Automatic L-H-N-R

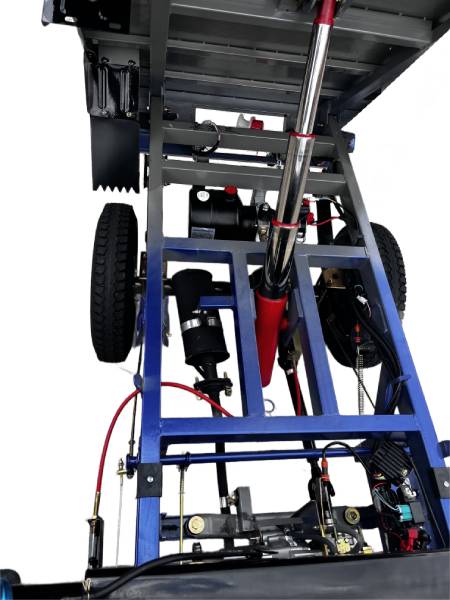

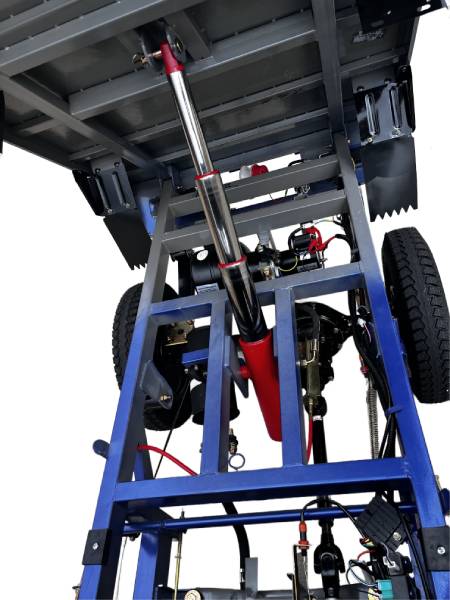

Discharge: Auto Hydraulic

Battery: 12V & 32AH （7“ x 5” x 6.5”）

Brake Type: Drum, Front (Hand),Rear(Foot),With Hand Parking Brake

Max Speed :  30-40 MPH

Dump Bed Capacity (LBS): 600 -800

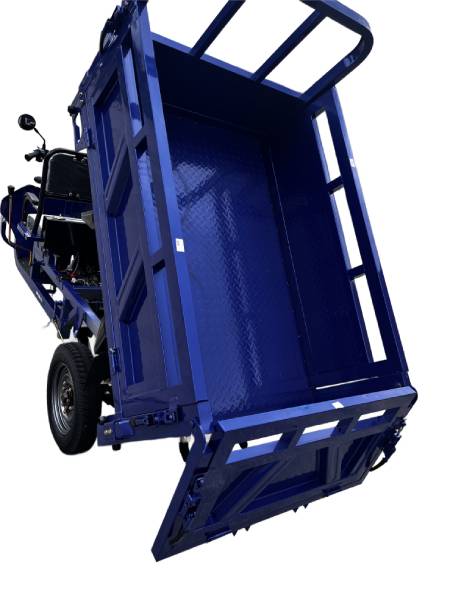

Dump Bed Size (Inch): L56”  W36”  H19”

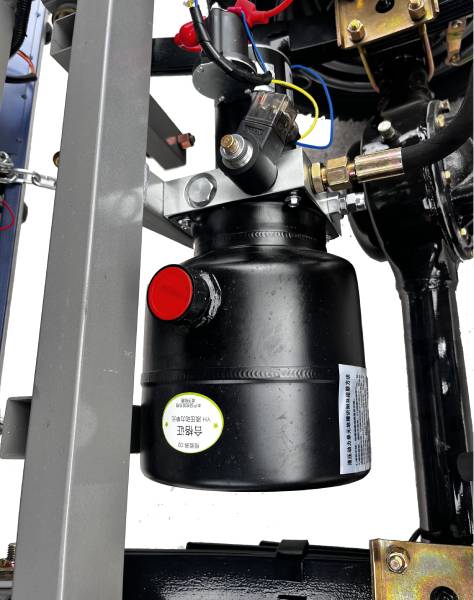

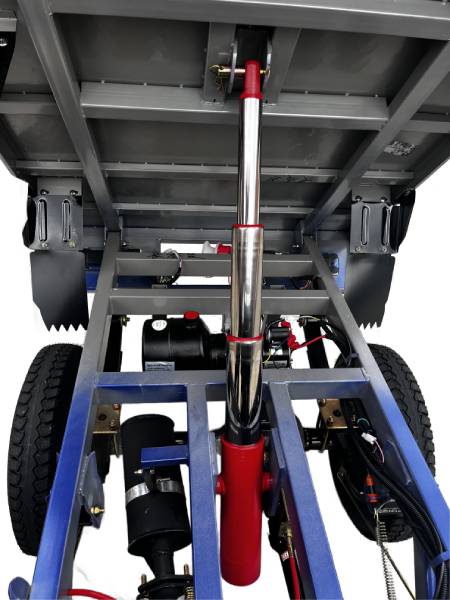

Hydraulic Dump Bed Motor: 12V,0.8KW

Front & Rear Tire: 4.00-12 Tubeless

Gradeability: 25°

Load Capacity (LBS): 1100

Fuel Tank Capacity(L): 20

Ground Clearance: 9.5"

Rear Axle Structure: load-Bearing Rear Axle

Front Shock Absorber:  Hydraulic Shock Absorber

Bore x Stroke: Ф54×54

Reduction ratio: 9.0:1

Max Power Kw(r/min): 6.2/7000

Max Torque N.m(r/min): 9.8/4500

Fuel Consumption Rate(g/kw.h): ≤367

Lubricating System: Compressive+Splash

Wheel Base: 82.5”

Carton Dimensions: 118”x44”x36”

Cargo  size: 121” x 43” x 55”

Weight(LBS): G.W: 850, N.W: 750
