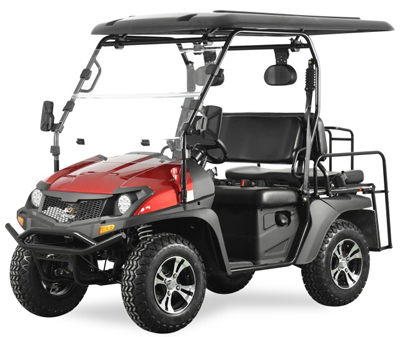

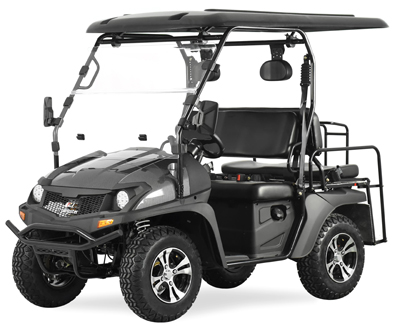

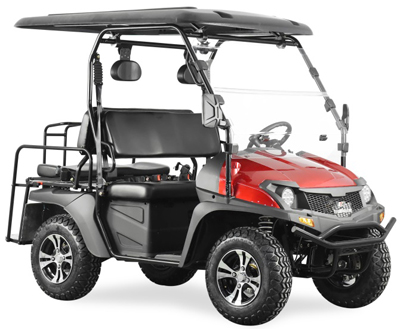

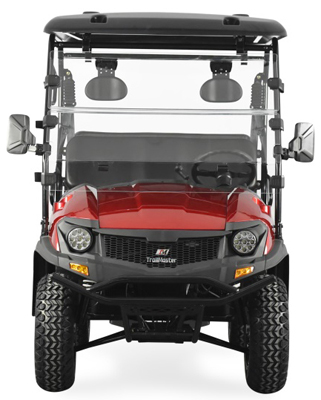

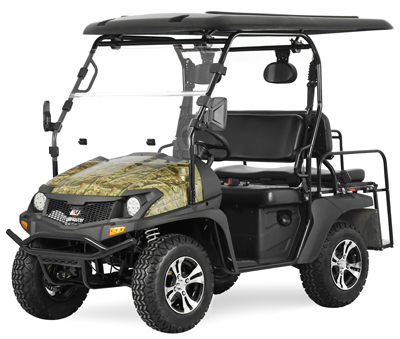

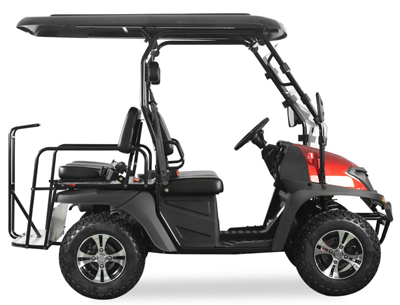

Taurus 200E- GX**Fuel Injection (EFI)**

Engine Information

·       EPA Certificated

·       Engine Type: 4-stroke, single cylinder, air and oil cooled

·       Displacement: 177.3cc

·       Compression Ratio: 8.8:1

·       Max HP: 9.5HP

·       Bore & Stroke: 62.5X57.8 mm

·       Max Torque and Crankshaft Speed: 11.0/4500 N.m/(RPM)

·       Nominal Power and Crankshaft Speed: 6.5/6500 kw/(RPM)

·       Max Speed: 25mph

·       Climbing Ability: 30 degrees

·       Ignition: C.D.I

·       Starting System: Electric

·       Battery: 12V 9Ah

·       Carburetor Brand: Deli

·       Engine Oil: SAE 15W/40

General Information

·       Transmission: Auto, L-H-N-R

·       Drive Train: Shaft Drive; 2 WD:

·       Drive Mode: Rear Shaft Drive, Rear differential

·       Suspension, F/R: Front MacPherson, Rear Dual A-ARM

·       Brakes, F / R: Both hydraulic brakes, Disc

·       Tires, F / R:  24 x 8-12 / 24 x 8-12

·       Fuel Tank Capacity: 4.8 gallons

·       Wheels: Aluminum

·       Weight, G.W. / N.W.:  1136 lbs/ 880 lbs

·       Max Load: 800 lbs

Dimension Information

·       Wheelbase: 63”

·       OA L x W x H: 108”x54”x74”

·       Seat Height: 33”

·       Min Ground Clearance: 11”

Configurations And Specifications Subject To Change Without Notice. “BV POWERSPORTS, LLC”

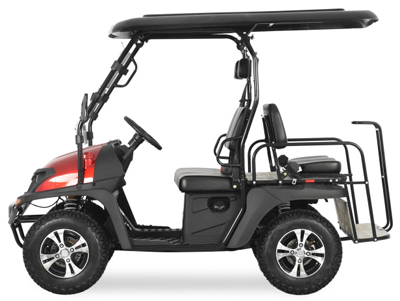

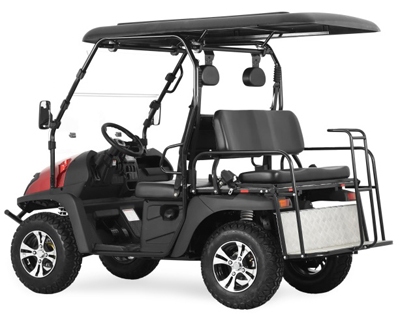

Taurus 200E-GX - Key features:

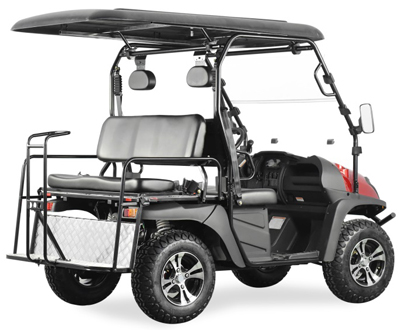

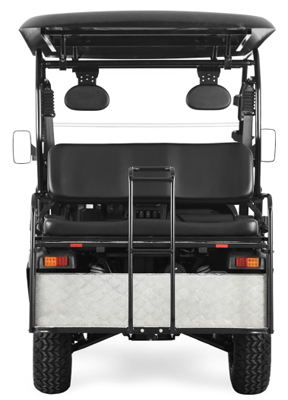

·       Equipped with rear flip seat with extended hard roof top. Can be used as a neighborhood golf cart to carry up to 4 persons.

·       Equipped with H/L gear, low gear mode has 40% better climbing ability than the non H/L version & can climb up to 30 degree slopes with ease.

·       Air and oil cooled high performance 177.3 cc GY6 engine with internal reverse set up, with rear shaft direct drive, more reliable power transmission, higher transmission efficiency;

·       Four-wheel independent suspension for much better driving experience

·       Heavy duty frame, net weight 880 lbs, max load 800 lbs for 4 adult with flip seat

·       Digital dashboard

·       LED Hi/Lo head light

·       Rear view side mirrors

·       Sporting steering wheel

·       Turn signals

·       Safety harness seatbelt

·       Big dual purpose tires: F / R: 24 x 8-12 / 24 x 8-12

·       Polished aluminum wheels

·       Extended Hard top

·       Adjustable heavy duty front and rear shock absorber

·       Rack and pinion steering wheel

·       Front and rear hydraulic disc brake

·       Large gas tank

·       Horn

Options

·       Optional folded windshield

·       Optional 2000lbs-winch

·       Optional LED light bar
